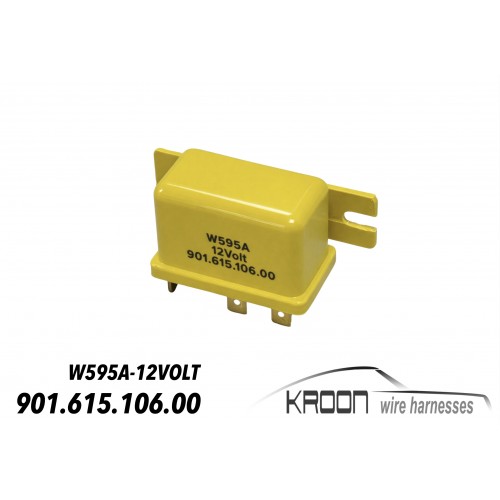

Also referred to as W-595A, this yellow relay controls both the hazard warning system and the fog light circuit.

Location: behind pedal board, above pedal cluster.(hazard warning) or near fusebox (foglights)

Our upgraded relay assembly incorporates modern ISO 40A Panasonic components and integrated transient voltage suppression, effectively protecting the system against voltage spikes.

This protection significantly extends the service life of both the relay contacts and the coil.

The cover is 3D printed using very high quality filament offering excellent durability and strong resistance to chemicals.

The casing has the original text and part number on it.

• Operating voltage: 12V
• Coil resistance 103 ohm
• Coil power 1,4W
• Isolation coil to contact 500Vrms
• Switching current 40 Amps
• Min temp -40 degrees , max temp +85 degrees

• Contact material, gold







  SOON AVAILABLE !
