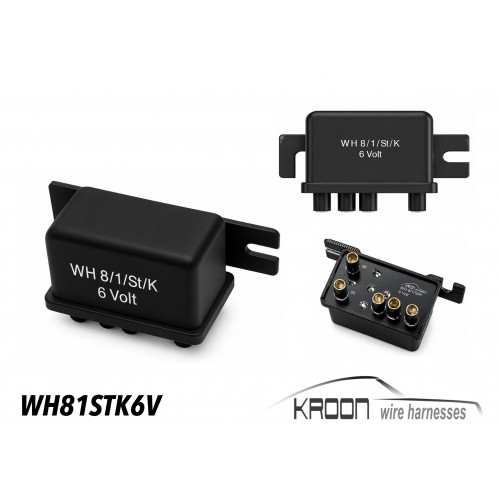

Also referred to as WH8/1/St/K this black relay controls the horn function

Our upgraded relay assembly incorporates modern ISO 40A Panasonic components and integrated transient voltage suppression, effectively protecting the system against voltage spikes.

This protection significantly extends the service life of both the relay contacts and the coil.

The cover is 3D printed using very high quality filament offering excellent durability and strong resistance to chemicals.

The casing has the original text and part number on it.

• Operating voltage: 6V
• Coil resistance 103 ohm
• Coil power 1,4W
• Isolation coil to contact 500Vrms
• Switching current 40 Amps
• Min temp -40 degrees , max temp +85 degrees

• Contact material, gold
