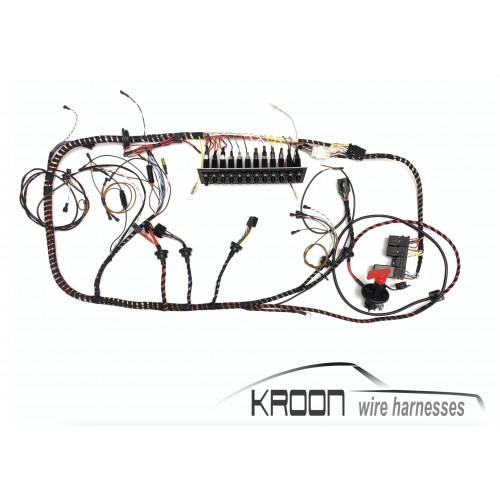

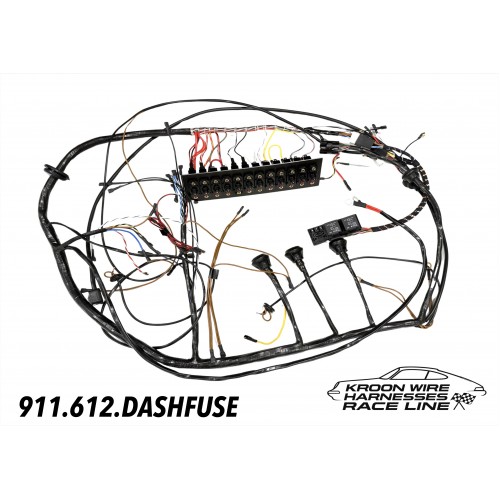

Complete main trunk harness for dash mounted 12 pole fusepanel.

• No molded relay sockets.
• Cable entry through bulkhead underneath window wiper  (holes to be drilled, grommets included)
• Hazard switch and headlight switch are connected directly to the switches
• Battery isolation switch included.
• Special extra harness for 4 x relay mounted in glove box.

• Fusepanel and 12 x automatic circuit breakers needs to be separately ordered !

Any variation is also possible, please contact us for details.

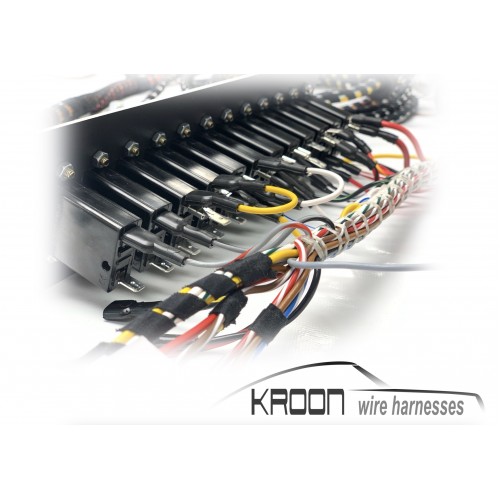

Wire tube, and oil resistant tape as original. Terminals have rubber sleeves. Harness comes with detailed connection instructions.

As original colored wiring.

Original neoprene terminal sleeves used, (no shrink tube!)

Very high quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53

Gasoline, oil, battery acid, engine coolant resistant.

High flex sleeving ,very resistant to solvents and free of halogen, sulphur and phosphorous.

(Shown fusepanel not included and need to be ordered separately )

(Required production time 1-8 days)
